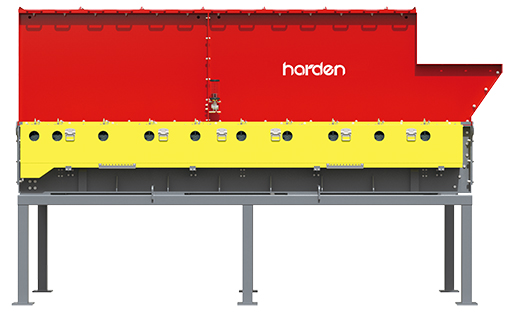

三角盘筛-(3)左侧
三角盘筛-(2)右侧

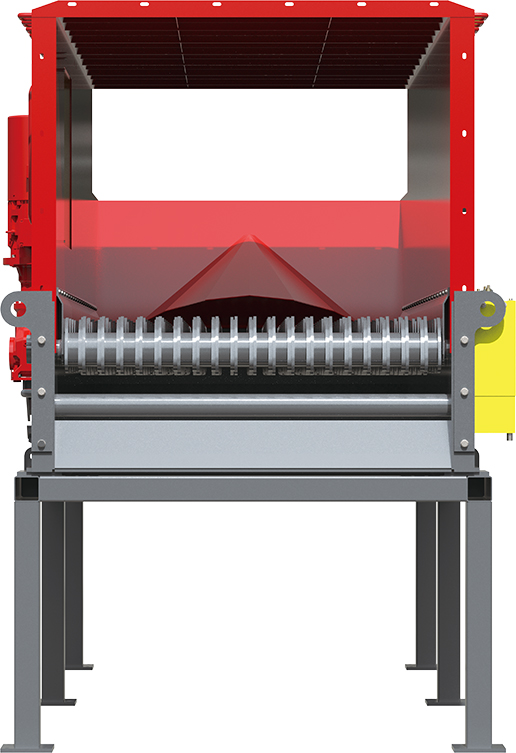

三角盘筛-(1）俯视
Separator

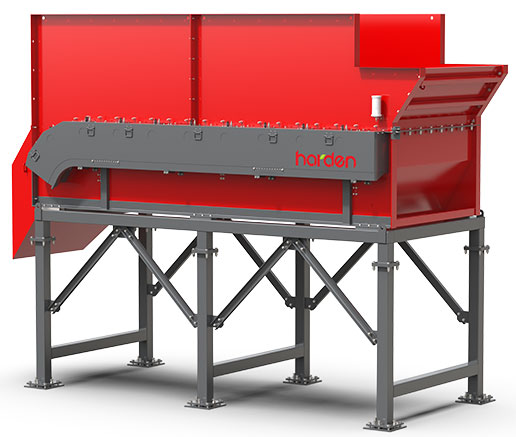

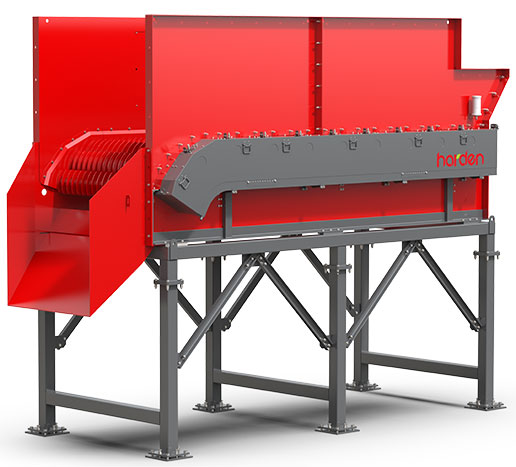

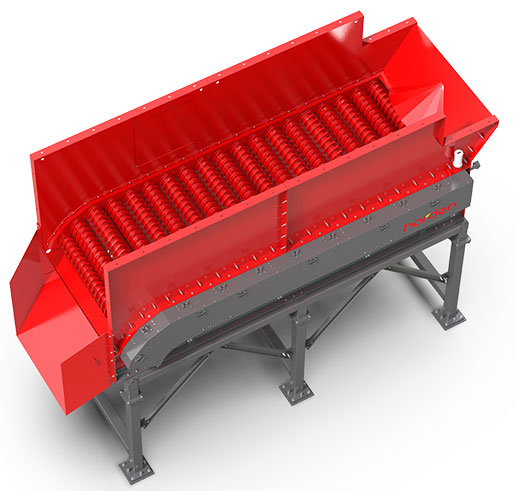

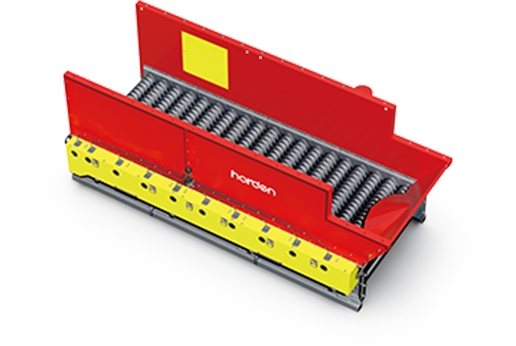

Triangle Roller Screen

HARDEN triangular roller screen is an innovative screening equipment developed with multiple patentedtechnologies to meet the diverse needs of solid waste treatment processes, t features a unique design thatallows for modular combination and assembly, catering to various screening size requirements whileprioritizing innovation, energy efficiency, and environmental sustainability. With its low energyconsumption, minimal noise, high efficiency, and exceptional screening pass rate, this equipmentrepresents a significant advancement in screening technology.


The design incorporates patented anti-winding technology for the screen shaft, a discharge guidestructure to prevent material blockage, and our proprietary "shredder feed guide, diversion, and evenmaterial structure" technology, placing it at the forefront of advanced screening equipment.


This equipment provides a comprehensive solution for solid waste treatment processesand is primarily utilized for screening materials with low viscosity and moisture contentincluding raw domestic waste, household waste, construction waste, biomass fuelkitchen waste, general industrial waste, and waste rubber tires.


What Distinguishes
The Triangle Roller Screen

What distinguishes
4-5.5kw
Power
15-100t/h
Capacity
50-150mm
Particle Size

What Materials Can Be Separated?

Separated materials

Advantages At A Glance

Advantages
Structural Design
Screening Effect
Large Processing Capacity
Shock Absorbing Protection
Installation and Maintenance
Screening Effect
Large Processing Capacity
Shock Absorbing Protection
Installation and Maintenance
Structural Design

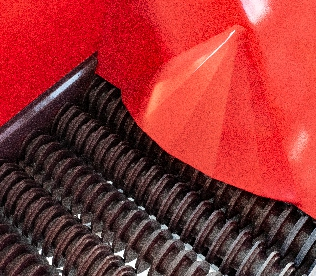

Structural Design

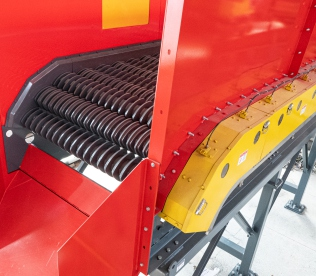

The triangular roller screen features a row of screen shafts driven by a motor, serving asthe primary operational component of the screening equipment. lts installation angle can be adjusted to suit the specific material being screened, Incorporating our proprietary technologies such as the "shredder feed guide, drainage, and even material structure," this design induces a wave like motion in the material, enhancing its movement across the screen surface, This results in higher screening rates, and increased processing flow.

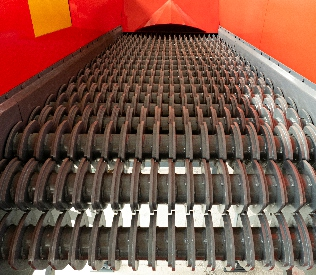

Screening Effect
The unique motion trajectory and robust beating strength of the screen, combined withanti-winding and anti-blocking features of the screen shaft, facilitate multiple tumbling of materials and automatic classification, particularly effective for fine-grained materials.The design minimizes clogging and sticking, offering smooth operation with low noise and power consumption. Furthermore,the optimized design significantly reduces dust pollution, aligning with modern industrial production's energy conservation andenvironmental protection requirements.
Large Processing Capacity
The linear arrangement of the triangular roller screen ensures a constant screen hole, size facilitating higher material processing rates, precise material sizing, and a high pass rate. The wavelike motion of the screen surface aids material dispersion and rolling, preventing fine particles from adhering to the screen holes and providing a self-cleaning effect during the screening process.

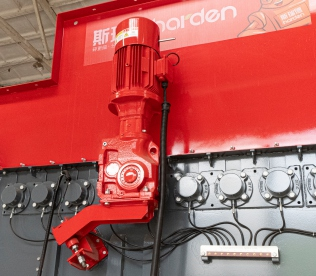

Shock Absorbing Protection
Incorporating a shock-absorbing torsion arm design in the reducer, the triangular rollerscreen effectively mitigates vibration transmission during operation, extending theequipment's service life. This design also buffers the impact of materials on the screenbody and power system, providing added protection.

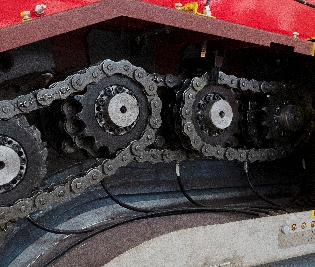

Installation and Maintenance
Featuring a compact and standardized structure, the triangular roller screen saves installationspace, and the design incorporates convenient access for maintenance, centralized lubrication of bearings, automatic lubrication system for transmission chains, and overload protectiondetection for the drive system. The modular assembly facilitates easy customization to meetvarious customer screening size needs in solid waste treatment.

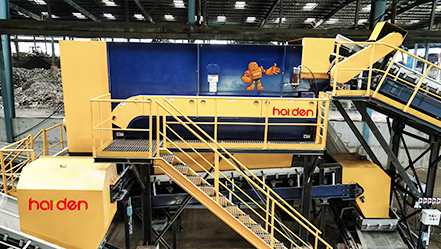

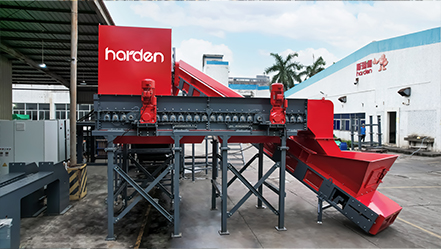

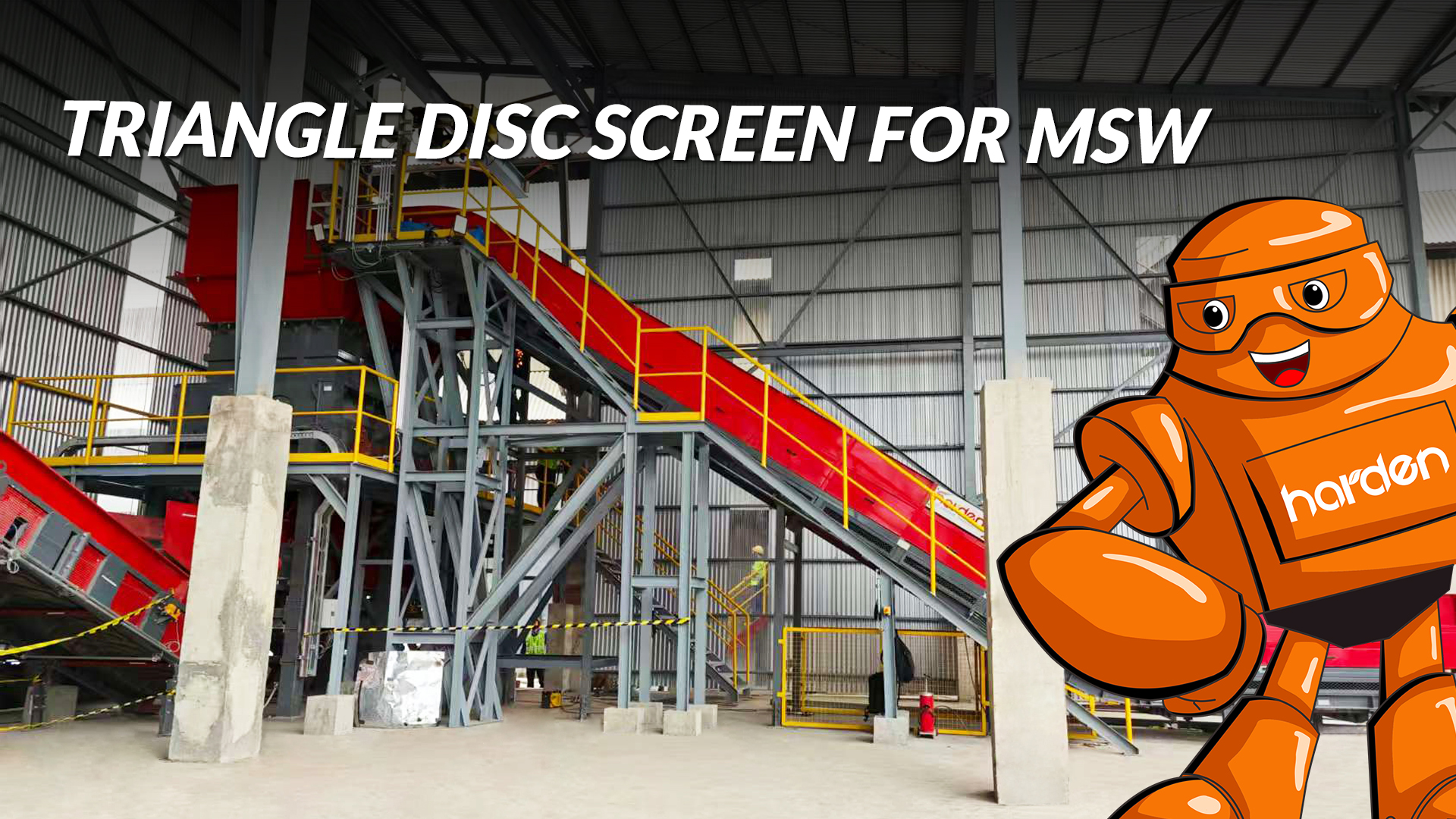

Our Case

Our Case
现场图2-411x249px
现场图1-411x249px

Specific Parameter

  • TDS2000
    Power (kw)
    4
    Net Width (mm)
    1500
    Roller Screen Length (mm)
    2500
    90% Discharge Size (Optional)(mm)
    50-150
    View More
  • TDS3000
    Power (kw)
    5.5
    Net Width (mm)
    1500
    Roller Screen Length (mm)
    3500
    90% Discharge Size (Optional)(mm)
    50-150
    View More
  • TDS5000
    Power (kw)
    5.5
    Net Width (mm)
    1500
    Roller Screen Length (mm)
    3500
    90% Discharge Size (Optional)(mm)
    50-150
    View More
Download the brochure
Screening Equipment.pdf
