JUST SHRED IT, THUS SORT IT.
阶梯筛内图
Separator

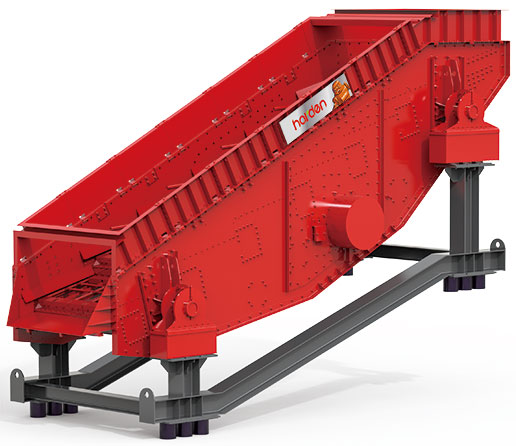

Step Screen

The step vibrating screen is based on the principle of mechanical vibration.


The exciter provides the excitation force to drive thescreen plate to vibrate in a circle.


The materials are stratified and transported under the vibrating projection of the screen machine.Materials smaller than the mesh size fall down and are transported, which is complete particle size classification.

What Distinguishes
The Step Screen

What distinguishes
80-100m³/h
Maximum Throughput Capacity
2000*6000mm
Screening Area
45kw
Drive Power

What Materials Can Be Separated?

Separated materials

Advantages At A Glance

Advantages
Bulky Waste Handling
Modular Design
Performance Optimization
Structural Optimization
Thin Oil Lubrication
Convenient Adjustment
Secondary lsolation
Smooth Start And Stop
Modular Design
Performance Optimization
Structural Optimization
Thin Oil Lubrication
Convenient Adjustment
Secondary lsolation
Smooth Start And Stop
Bulky Waste Handling

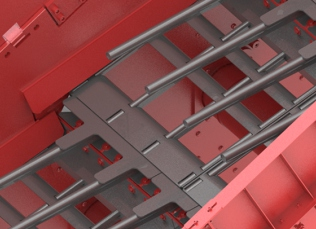

Bulky Waste Handling
The larger opening and specially designed screen mesh are especial suitable for pre-screening of large-sized waste,while minimizing the possibility of missed selection,incorrec selection and clogging of stuck waste and improving screening efficiency.

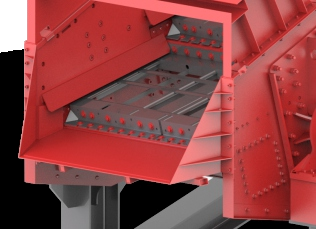

Modular Design
The structural components are modular,which facilitates maintenance and replacement and can be flexibly adjusted according to the production line. Different forms of screens can also be replaced according to material characteristics

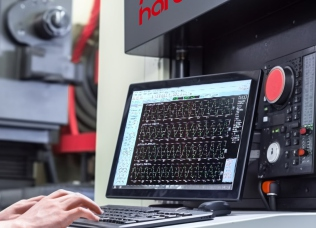

Performance Optimization
Special instruments are used to monitor and adiust various performance indicators before leaving the factory to ensure that the equipment reaches optimal operating status.
Structural Optimization
The reinforced screen machine structure improves vibration fatiquelife and overall reliability. The finite element method isused to make the structural design more reasonable, avoid resonance,and have better stability.

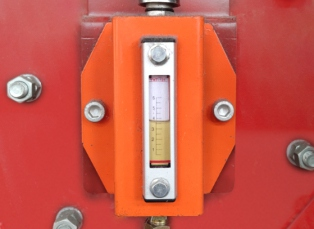

Thin Oil Lubrication
The exciter bearing adopts double sealing and thin oil lubrication. which effectively extends the bearing life and makes maintenance easier.

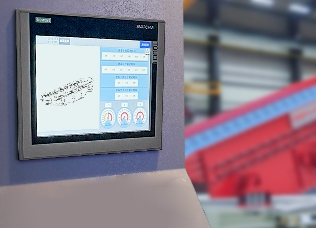

Convenient Adjustment
According to the material characteristics,vibration parameterscan be quickly adjusted on site.

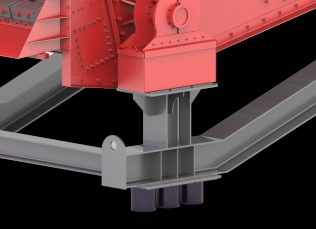

Secondary lsolation
The impact on the screen box is reduced,the vibration transmission to the ground is smaller, and the service life of the equipment is longer.
Smooth Start And Stop
Minimize start-stop shaking and reduce instantaneous impact on the screen machine and foundation. At the same time,the starting current of the motor is limited to reduce the power supply pressure of the factory.

Our Case

Our Case
阶梯筛封面

Specific Parameter

  • SZS-S2060
    Drive Power (kw)
    45
    Screening Area
    2000*6000
    Capacity (m³/h)
    80-100
    Machine Dimension (mm)
    7800*4200*5600
    Machine Weight (t)
    13
    View More
Download the brochure
Screening Equipment.pdf
