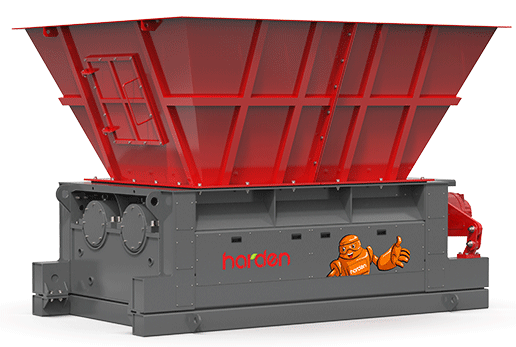

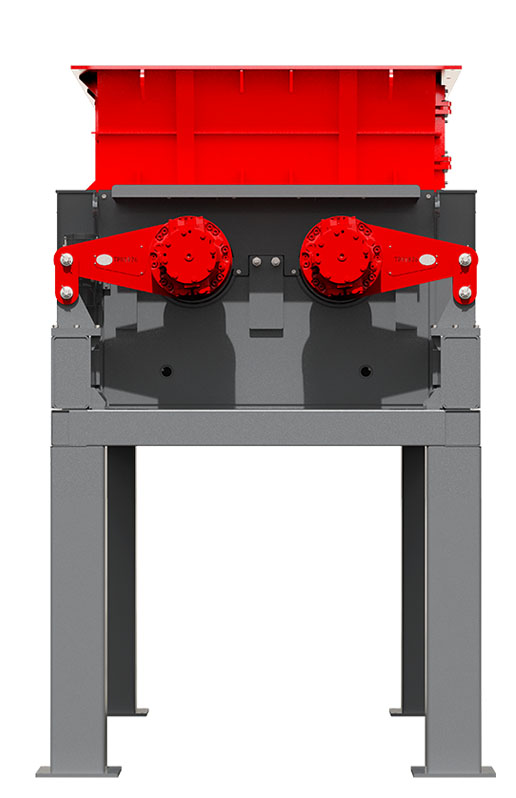

粗破碎机TPH1620右侧

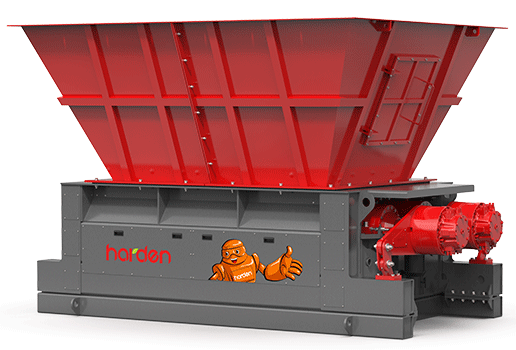

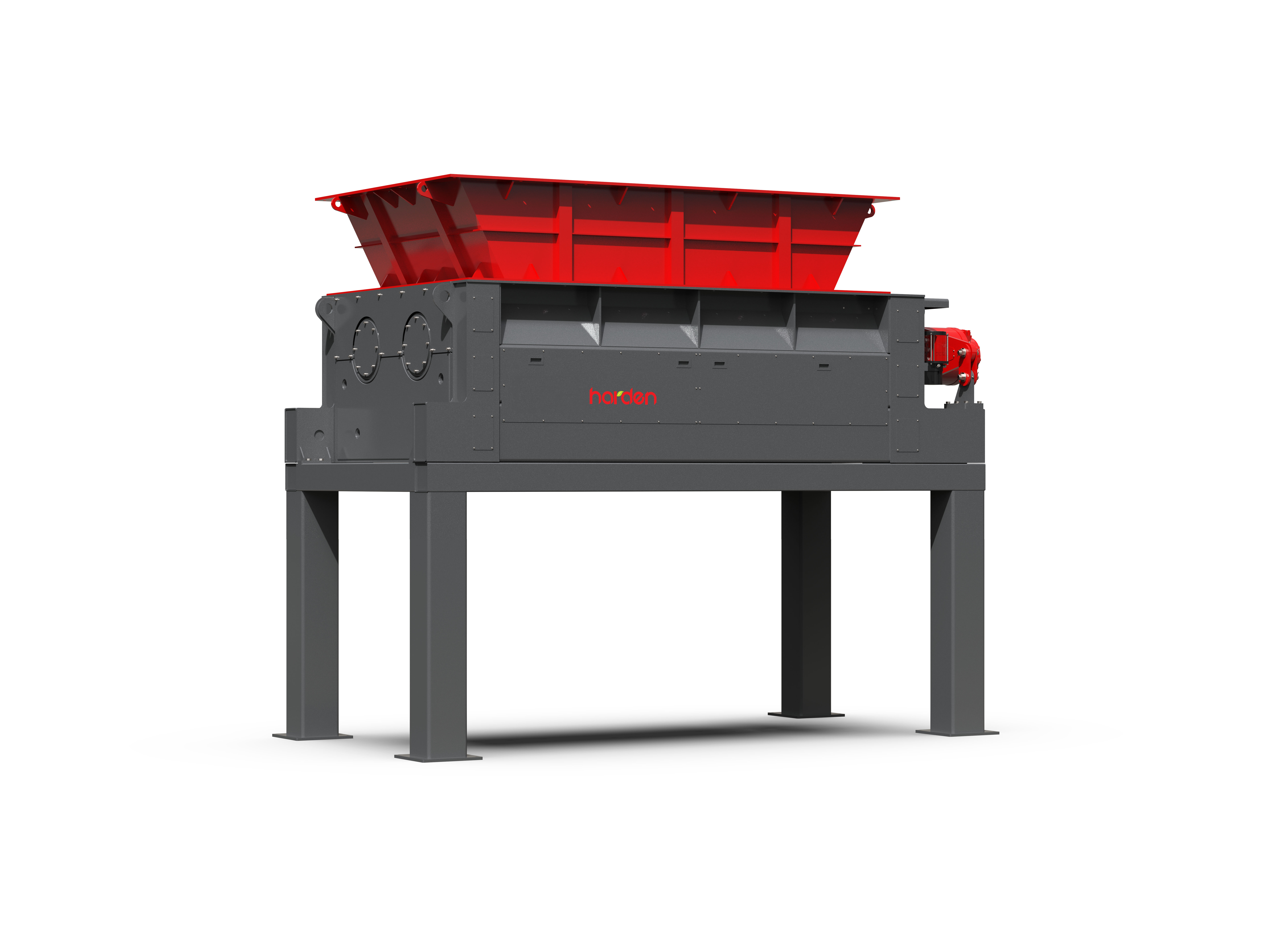

粗破碎机TPH1620正面

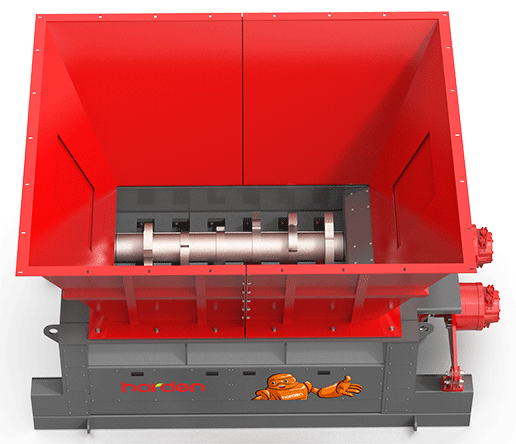

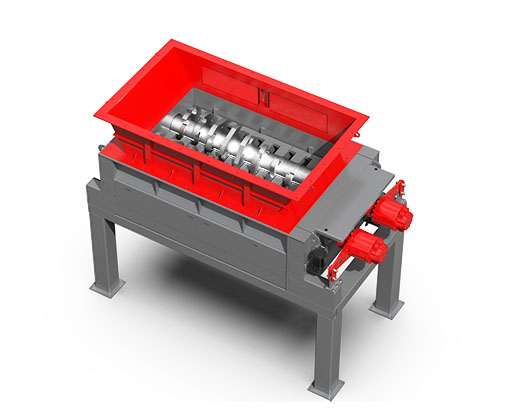

粗破碎机TPH1620俯视
Shredder
Primary Shredder-TPH Series

Harden large-scale hydraulic driven primary shredder, with the characteristics of high strength and low maintenance cost, is used forvolume reduction of bulky waste and pretreatment application of solid waste, which combines with multiple processing mechanismsuch as shearing, chopping, tearing and extrusion, can easily process the complicated mixed solid waste, e.g. the untreated MSWDecoration waste and industrial waste.


Harden primary shredder can discharge materialflow with relative uniform particle size, whichis convenient for sorting equipment to further separate or recycle the material, so as to obtain valuable recycling resources or highcalorific value RDF, Besides, primary shredder can be used as "Bag opener" with the redesigned cutter.

What Distinguishes The
TPH Series Primary Shredder

What distinguishes
15-80t/h
Maximum Throughput Capacity
80-300mm
Particle Size
132-400kw
Motor Power

What Materials Can Be Shredded?

Shredded Materials

Advantages At A Glance

Advantages

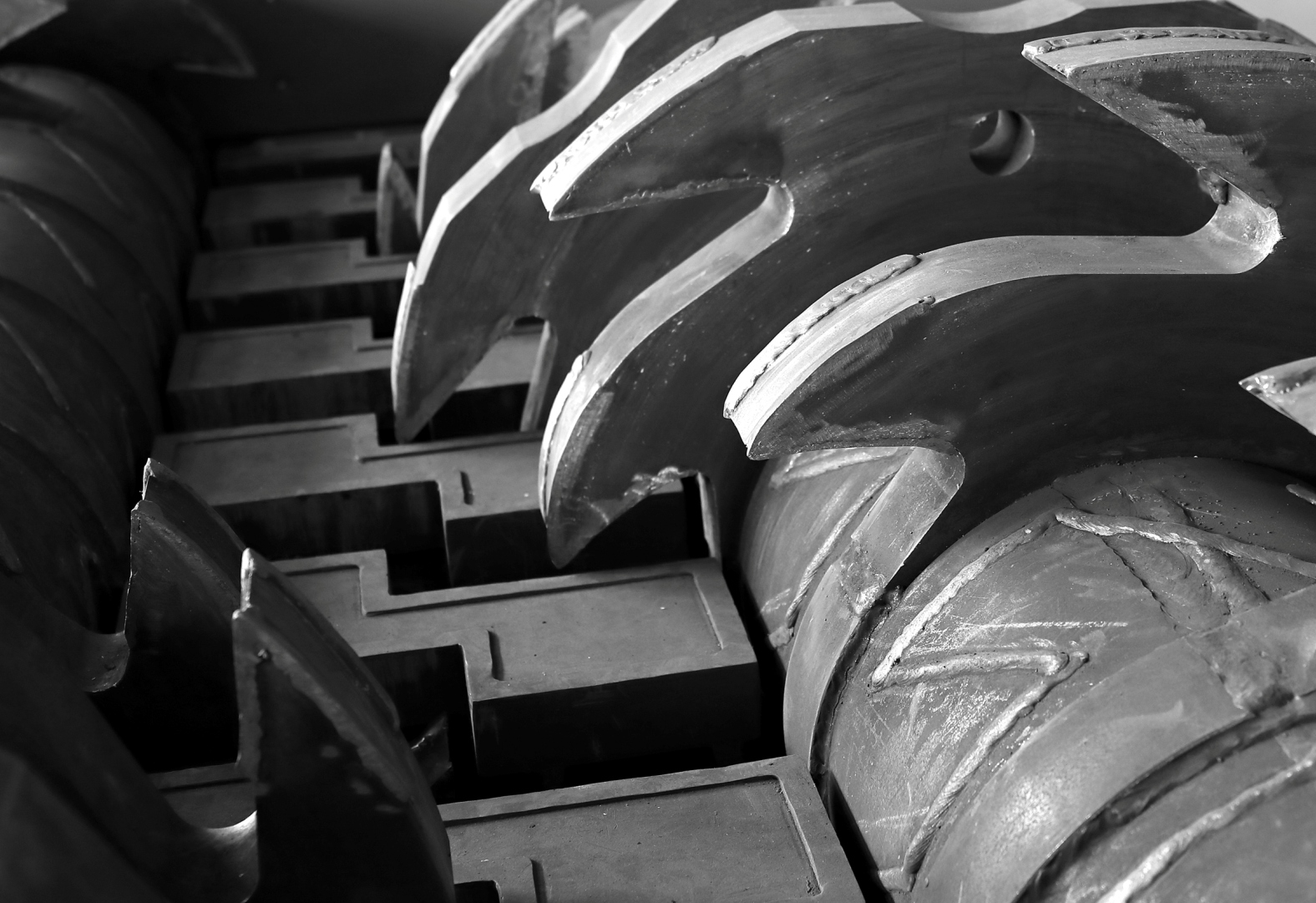

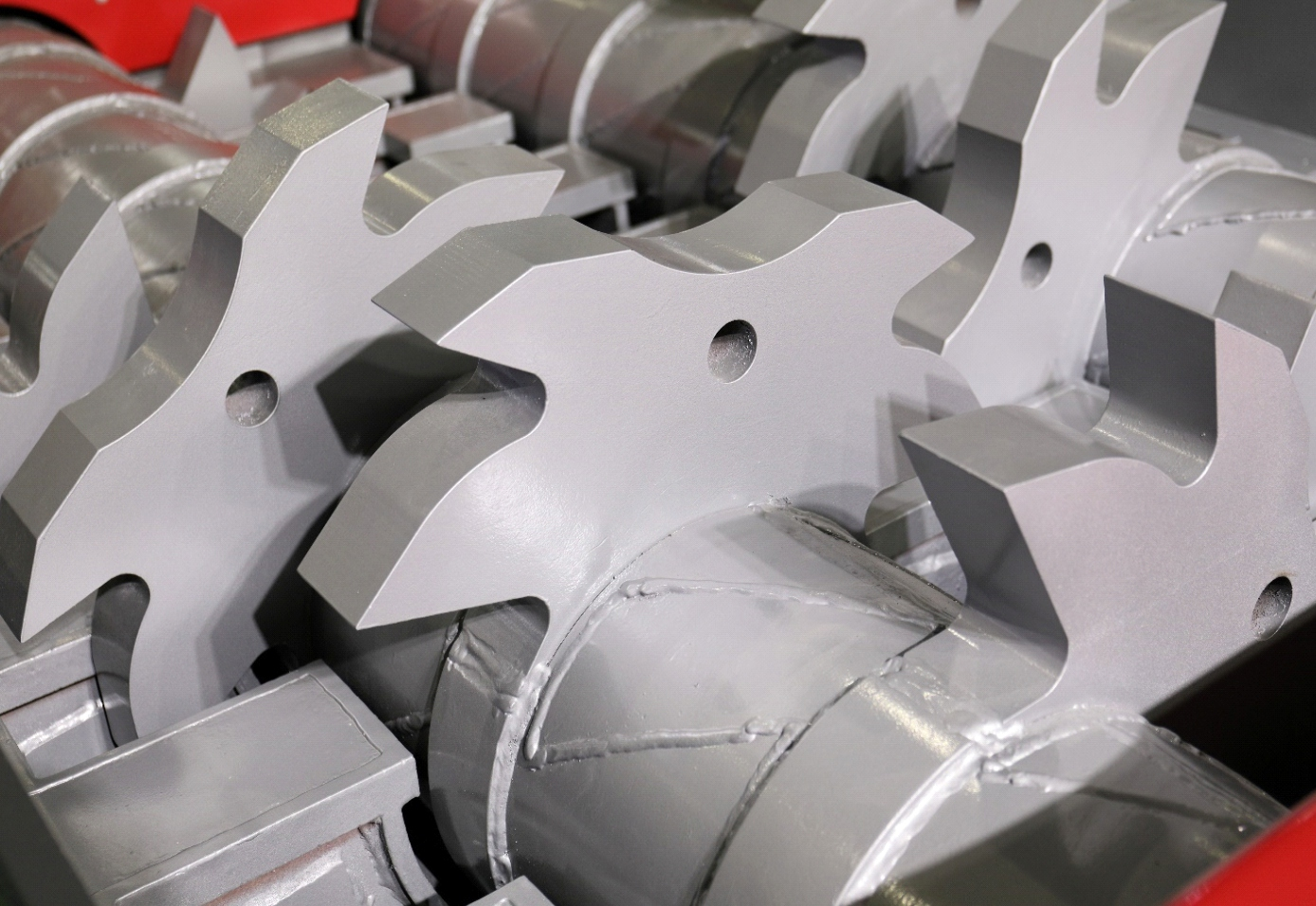

Knife material: High impact & abrasion resistance. Shaft material: 42CrMo alloy, heat-treated & ultrasonic-tested.

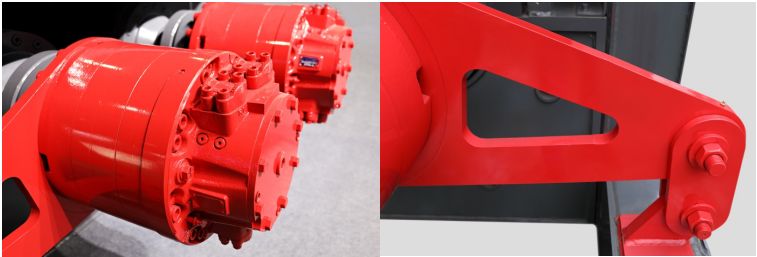

Max pressure: 40mpa for continuous high torque output. Bearing lubrication: auto lubrication system.
Knives repair: Knives on the shredder can be maintained via hard-facing directly without disassembly.

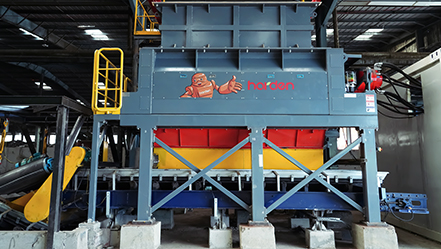

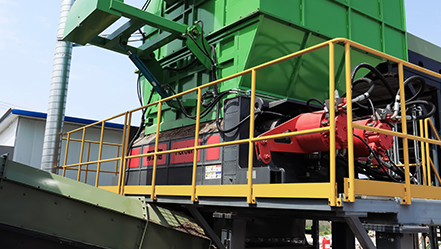

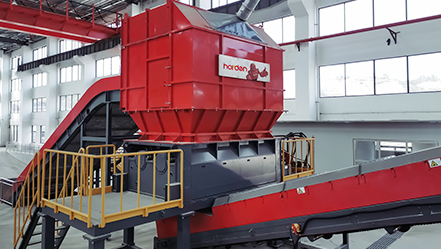

Our Case

Our Case

Specific Parameter

  • TPH1026
    Motor Power (kw)
    132-200
    Rotational Speed (rpm)
    17-58
    Capacity (t/h)
    15-40
    Cutting Chamber (AxB)(mm)
    1000*2600
    Quantity of Knives (pcs)
    9-11
    Machine Dimension (LxWxH)(mm)
    5000*1550*1200
    View More
  • TPH1620
    Motor Power (kw)
    132-250
    Rotational Speed (rpm)
    17-58
    Capacity (t/h)
    20-50
    Cutting Chamber (AxB)(mm)
    1600*2000
    Quantity of Knives (pcs)
    14-18
    Machine Dimension (LxWxH)(mm)
    4400*2100*1060
    View More
  • TPH1826
    Motor Power (kw)
    250-400
    Rotational Speed (rpm)
    17-58
    Capacity (t/h)
    30-80
    Cutting Chamber
    (AxB)(mm)
    1800*2600
    Quantity of Knives (pcs)
    18-22
    Machine Dimension (LxWxH)(mm)
    5000*2350*1200
    View More
Download the brochure
Primary Shredder.pdf

Perfect Solid Waste Solution

Custom-made solution
For special requirements, we offer the custom-made solution!
