AFR shredders—often referred to as AFR Shredders or RDF Shredders—do far more than size reduction.

They determine particle size, homogeneity, bulk density, structural consistency, and even separability during downstream processes. In long-residence, high-temperature cement kiln systems, these characteristics directly influence thermal efficiency, flame stability, and substitution rates.

Why AFR Shredding Matters

A reliable AFR shredding process strongly shapes the key attributes of kiln-ready fuel:

· Consistent particle size: Uniform 30–50 mm particles support steady pneumatic conveying and complete combustion.

· Bulk density and morphology: Proper shredding reduces fluffiness, increases density, and stabilizes dosing and feeding.

· Downstream processing efficiency: Quality shredding enhances magnetic separation, air-classification, and contaminant removal.

· Stable combustion behavior: Predictable particle size contributes to steady heat release and reduced calorific value fluctuations.

Because transport, dosing, separation, and combustion all depend on the structure formed at the shredding stage, the AFR shredder fundamentally determines whether a waste stream can become a stable, high-quality alternative fuel.

What an AFR Shredder Must Deliver

Today’s AFR production demands shredders capable of handling a broad range of complex waste streams while consistently producing <50 mm output suitable for kiln feeding.

A well-engineered AFR shredder typically offers:

· High torque and adaptability

· Stable and predictable particle sizing

· Wear- and impact-resistant cutter systems

· High uptime and simplified maintenance

Harden Machinery Ltd., a technology provider with extensive experience in solid-waste processing, has integrated these capabilities into its Harden AFR shredding solutions by refining rotor designs, cutter geometry, chamber configurations, and system reliability to ensure shredding performance remains a strong foundation for AFR quality.

Depending on project requirements, shredders can be integrated into multi-stage preprocessing systems or into more compact configurations. Harden offers both approaches.

Alongside its multi-stage shredding solutions used for comprehensive AFR processing, Harden also provides compact options such as the Harden one-step AFR Shredder.

This configuration delivers <50 mm output in a single pass using minimal equipment—a shredder, a discharge conveyor, and a grab loader—and requires only about 105 m² of installation space. It offers an efficient alternative where a simplified layout is preferred, while maintaining the performance and consistency required for AFR production.

A Real-World Example of AFR Shredding Performance

The importance of AFR shredding becomes especially clear in operational settings.

In one RDF project in South China, designed and supplied by Harden Machinery Ltd., the production line processes a mixture of paper waste, textiles, leather offcuts, lightweight plastics, and other industrial residues.

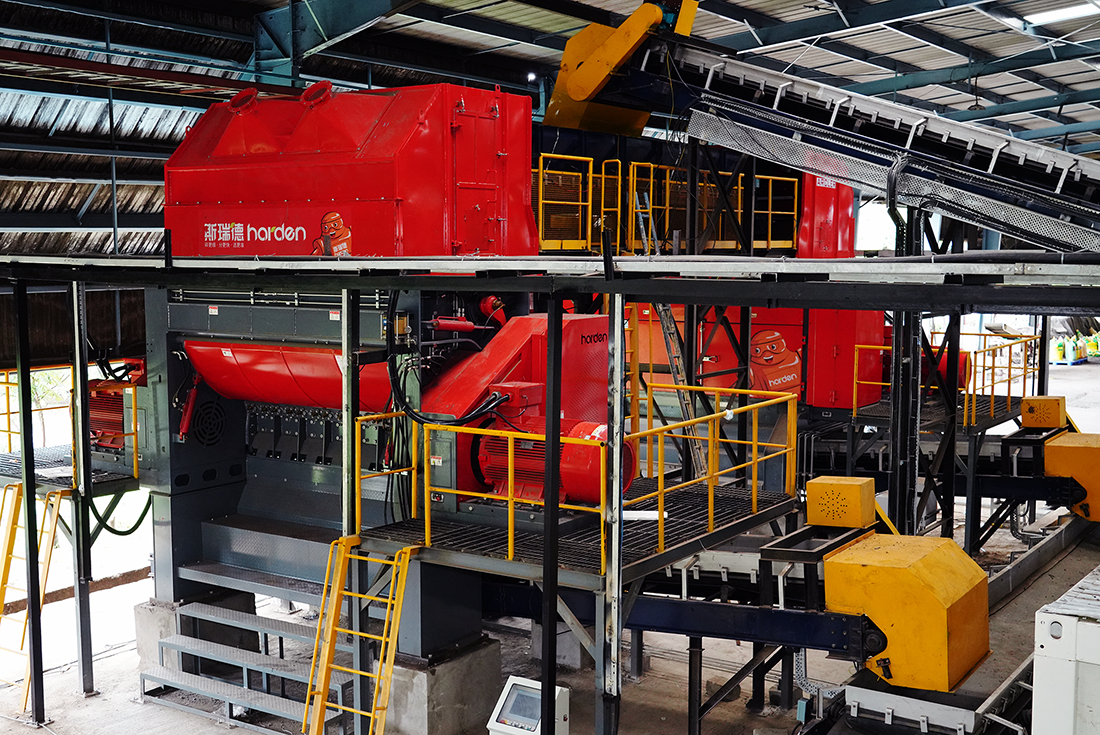

Supported by a stable and precisely controlled Harden AFR Shredder system, the facility maintains a throughput of 15–20 tons per hour and consistently produces <50 mm fuel that meets kiln specifications.

This level of performance enables the plant to achieve an annual RDF output of 100,000 tons, which in turn allows it to replace approximately 67,000 tons of standard coal, reduce nearly 200,000 tons of CO₂ emissions each year, and lower fuel costs by about 15%.

With more stable calorific values and a smoother combustion curve, the cement kiln operates more reliably and achieves a significantly higher AFR substitution rate. This case illustrates how consistent shredding performance directly contributes to measurable environmental and economic benefits.

AFR Shredding as a Pillar of Clean-Fuel Production

AFR shredders play a central role in the clean-fuel value chain. They transform heterogeneous waste streams into fuels with consistent particle size, predictable combustion characteristics, and reliable feeding performance—qualities that are essential for cement kilns and other high-temperature industrial systems.

As global demand for sustainable fuels continues to surge, robust AFR shredding technology will remain one of the most important enablers of industrial decarbonization and resource efficiency.
