Reinventing Solid Waste Treatment: A Green Revolution in High-Capacity Fine Shredding Technology
In the solid waste resource recovery chain, efficient sorting remains the linchpin for downstream processing success. Yet, when confronting municipal solid waste (MSW) with moisture content exceeding 50%, sticky and compacted food waste, or complex aged landfill refuse, conventional trommel screens and other equipment often falter.
Screening efficiency plummets, blockages proliferate, and maintenance demands skyrocket—driving up operational costs. This persistent industry challenge has become a major bottleneck in elevating resource recovery rates.
The Dual Bottleneck: Throughput vs. Particle Precision
At the industrial front line, this contradiction between throughput and fine shredding becomes tangible.
Industrial waste contains irregular metals and complex composites; municipal solid waste (MSW) and renovation waste mix organic and inorganic fractions; plastic films and textiles bring high toughness and strong entanglement. Such extreme diversity overwhelms traditional shredders.
When handling high-moisture municipal solid waste, conventional machines often suffer severe capacity drops and inconsistent output (frequently above 100 mm). This leads to frequent blockages in downstream screening and windshifting systems, unstable AF calorific values, and low recycled plastic purity. More critically, once a jam or foreign object occurs, operators must halt production for hours to clear the system—directly cutting into profitability.
To break this impasse, the Harden SG3000RF single-shaft fine shredder was developed specifically for high-capacity fine shredding applications. After coarse shredding, screening, and metal removal, the SG3000RF—with its variable-torque drive and wear-resistant cutting system—handles complex materials such as plastics, textiles, and light mixed waste with ease, minimizing clogging and extending blade life.
Through an integrated system design, the shredder achieves stable particle sizes within 10–80 mm and as fine as 20 mm under precision settings—delivering both higher productivity and consistent quality while lowering operating costs and environmental impact.
From Power to Intelligence: A Fully Integrated Innovation
In solid waste processing, true breakthroughs come from rethinking the core systems—from mechanical power to intelligent control. The SG3000RF integrates both, enabling “powerful shredding” and “precise control” in one synchronized system.

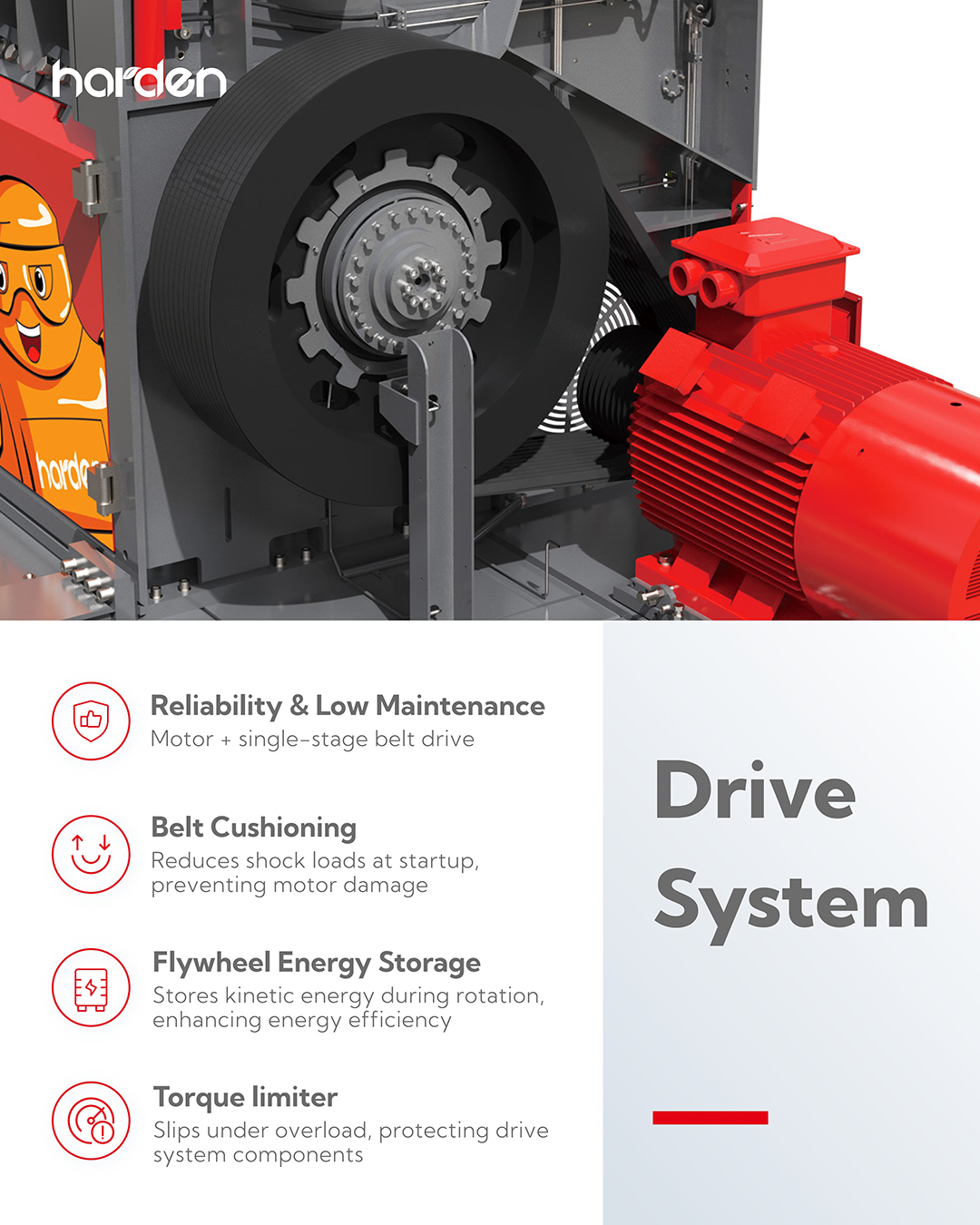

Powertrain: The Intelligence Behind Flexible Cutting
By combining robust torque with adaptive control, the SG3000RF brings a qualitative leap to shredding performance. Its variable-torque drive continuously senses material load fluctuations and automatically adjusts torque and speed, ensuring responsive and energy-efficient operation.
A reliable overload protection mechanism instantly activates under abnormal load conditions, absorbing impact shocks and maintaining safe, stable operation.

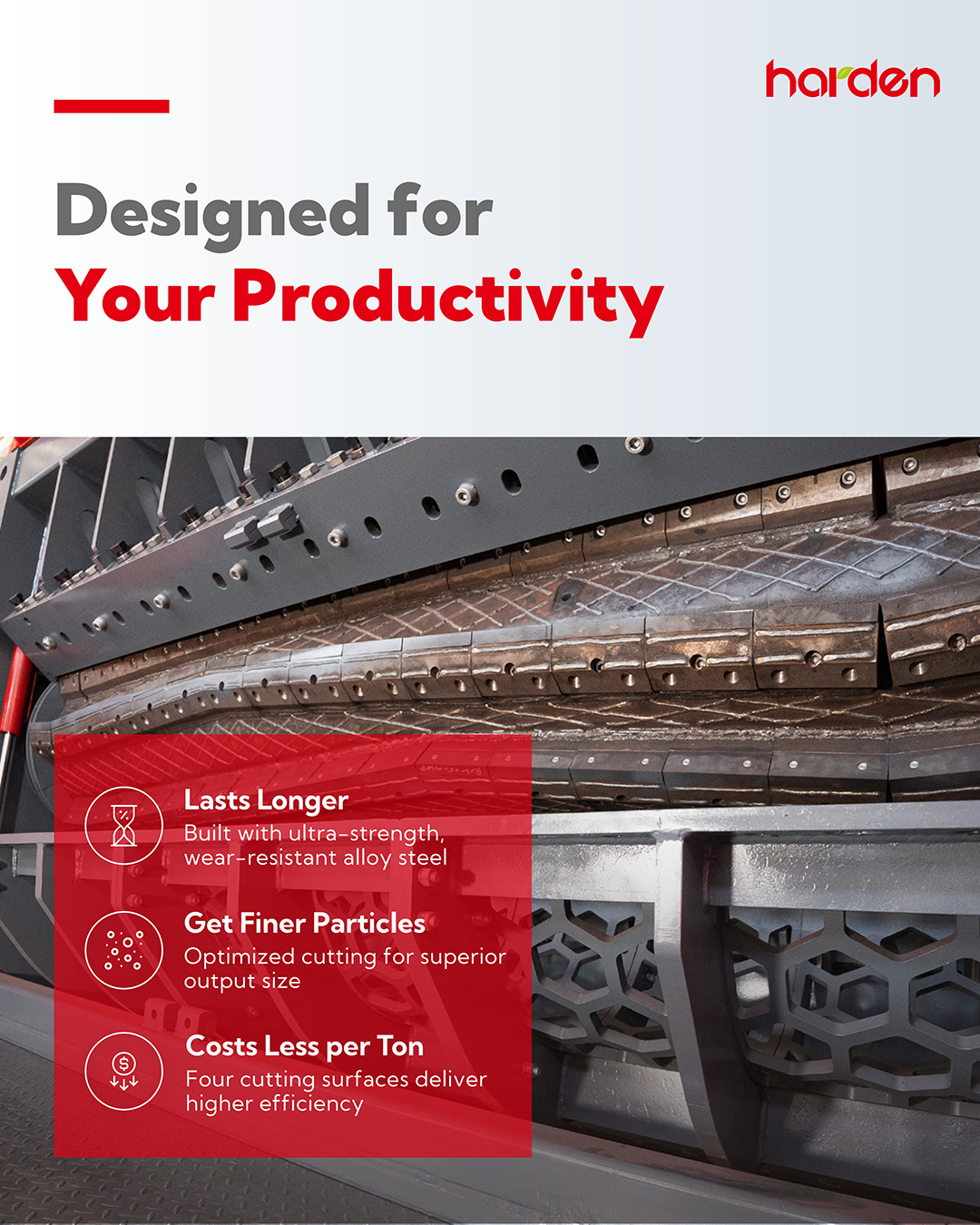

Cutting System: The Balance of Durability and Precision
Every detail in the SG3000RF’s cutting chamber reflects precision engineering. Using ultra-high-strength alloy steel blades with staggered four-edge geometry, the system performs linear cutting and simultaneous screen scraping, ensuring efficient size reduction and material discharge.
For diverse feedstocks—industrial waste, plastic films, or textiles—the blade life is significantly extended while reducing cost per ton.
An innovative adjustable cutter gap system eliminates time-consuming maintenance: operators can fine-tune the cutting clearance without opening the discharge door, reducing setup time from hours to minutes and turning maintenance from reactive to proactive.
Screening & Discharge: Efficiency Meets Convenience
The modular screen design enables fast changeover, with multiple aperture options (20–100 mm) to suit various output requirements. A front-opening discharge door clears foreign materials in under five minutes—especially valuable for stubborn waste streams.
The smart pusher system continuously monitors thrust and load, optimizing feed rate in real time for consistent throughput.
Smart Control: From Operation to Intelligent Management
The electrical system integrates equipment monitoring, fault diagnostics, and maintenance alerts. A touchscreen interface offers intuitive operation, while the IoT module supports real-time remote management.
Spacious service access and electro-mechanical interlocks enhance operator safety, marking the shift from operator-dependent shredding to intelligent, data-driven waste management.
Value & Outlook: Technology Driving a Circular Future
The new generation of fine shredding technology bridges the long-standing gap between throughput and precision. Its uniform and finely shredded output provides ideal feedstock for downstream recycling and AF preparation—particularly enhancing combustion efficiency and energy recovery in cement kilns.
Economically, this innovation lowers cost per ton, extends service intervals, and accelerates return on investment. Environmentally, it boosts material recovery rates and energy efficiency, supporting “zero waste” and ESG performance under global decarbonization goals.
As the waste management industry transitions from coarse shredding to fine resource recovery, Harden’s SG3000RF defines a new benchmark—reshaping how waste becomes value. Every technological breakthrough here drives not just operational gains, but the vision of a cleaner, low-carbon, and truly circular future.
