Yet, MSW harbors untapped energy potential: combustibles like plastics, paper, and textiles comprise over 40% of typical streams, convertible into stable alternative fuels and raw materials (AFR)—or RDF/SRF—with calorific values surpassing 3,000 kcal/kg, equivalent to 60% of standard coal. Just 1.9 tons of this AFR displaces one ton of coal, positioning it as "black gold" for coal-scarce regions.

Harden Machinery Ltd. delivers proven shredding and sorting solutions that unlock this value, rivaling industry leaders in efficiency for MSW-to-RDF production. Our integrated systems transform heterogeneous waste into kiln-ready fuel, advancing sustainable waste management in high-growth markets.

The Precision Pathway: 7-Step MSW-to-AFR Conversion

Converting MSW to AFR demands rigorous pre-treatment to ensure uniformity, low moisture, and minimal contaminants—far beyond basic shredding. Harden's closed-loop process, blending primary shredding with multi-stage separation, yields over 80% combustible recovery while capping moisture below 20%, meeting stringent specs for cement kilns and power plants.

1. Discharge and Conveying: Waste haulers unload into sealed hoppers; belt conveyors under negative pressure transport feedstock, curbing odor escape for compliant operations.

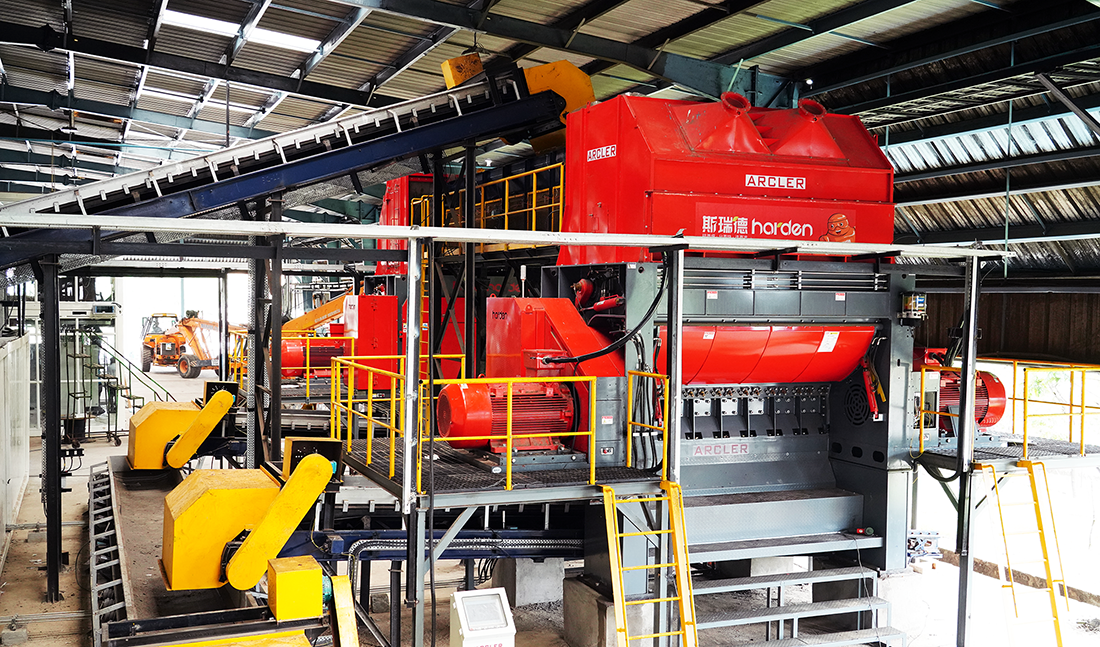

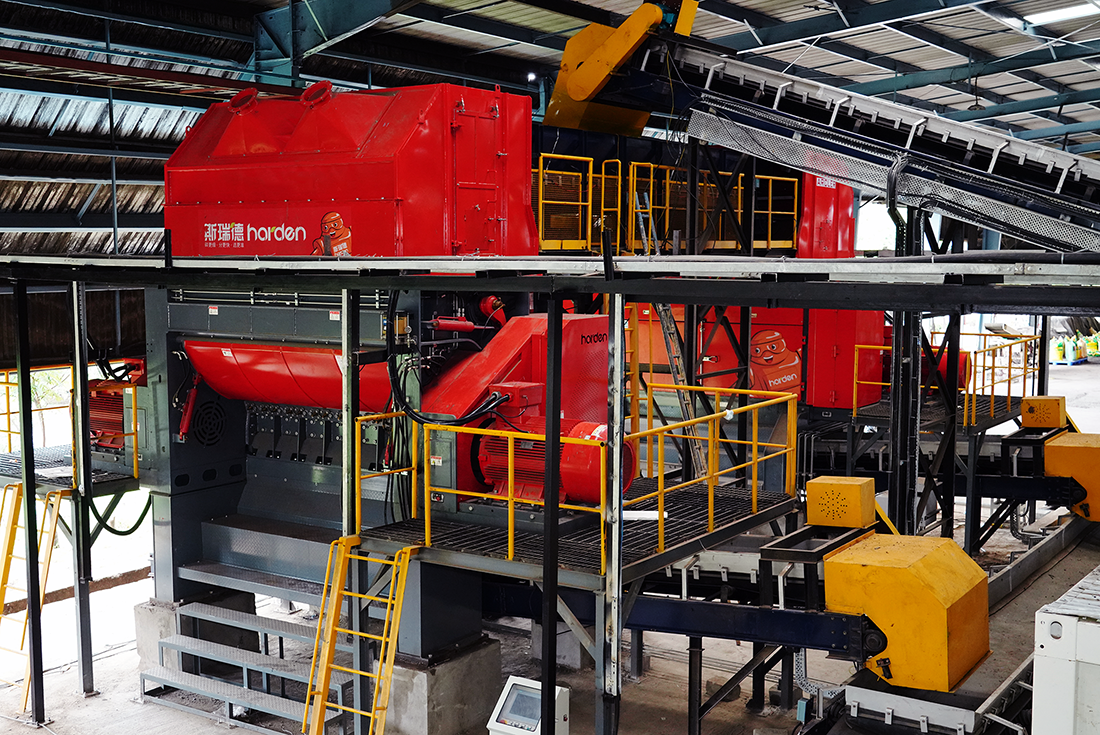

2. Primary Shredding: Harden's robust double-shaft shredders reduce mixed MSW—plastics, organics, and inerts—to uniform fragments, dismantling irregular morphologies without bridging.

3. Magnetic Separation: High-gradient magnets extract ferrous metals like nails and cans, enabling resource recovery and safeguarding downstream equipment from wear.

1. Disc Screening: Size-based disc screens fractionate output; undersized material advances, while oversize recirculates for reprocessing, optimizing throughput.

2. Air Classification: Windshifters exploit density differentials, isolating lightweight combustibles (films, paper) from heavy inerts (stones, glass) via adjustable airflow—key for high-purity RDF.

3. Secondary Shredding: Single-shaft fine shredders refine combustibles to 20-50mm granules, ensuring consistent particle size for efficient combustion and reduced emissions.

4. Emission Control: Integrated scrubbers and baghouses capture dust, VOCs, and odors, delivering clean exhaust compliant with ASEAN environmental standards.

This shredding-centric workflow—echoing best practices in European waste-to-energy plants—minimizes energy use while maximizing RDF quality, outpacing conventional multi-vendor setups.

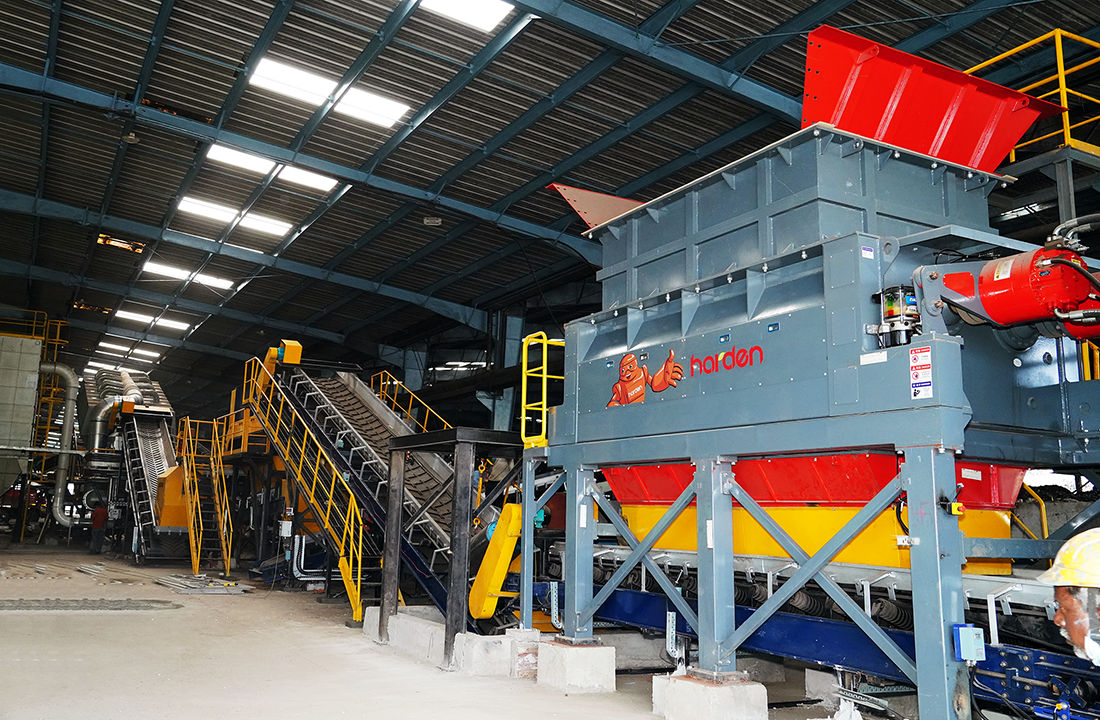

Southeast Asia Case Study: 300 t/d MSW Plant Delivers Green Fuel

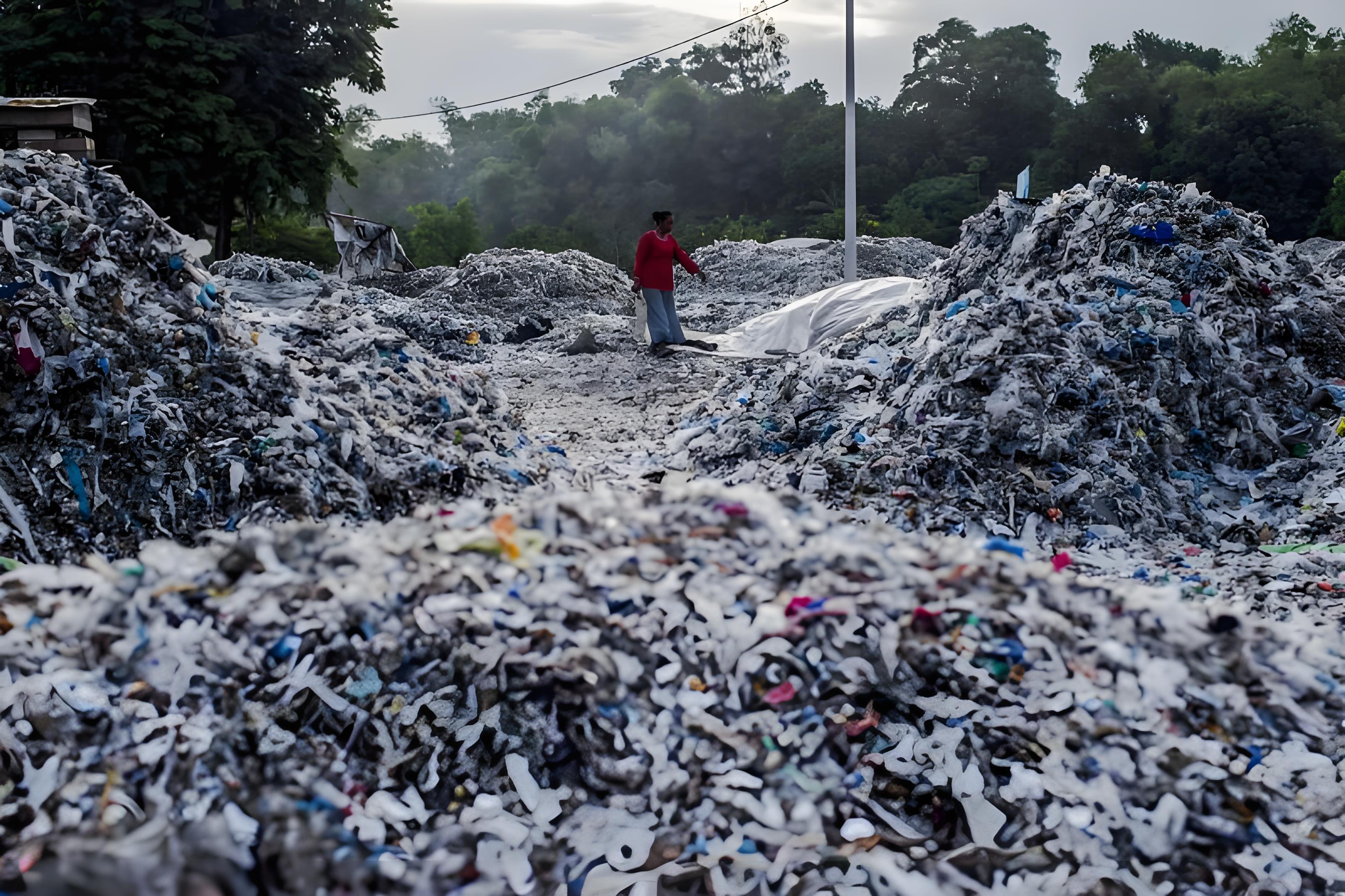

In a Southeast Asian MSW facility besieged by millions of tons of backlog—rendering nearby land unfit for agriculture—Harden engineered a turnkey AFR line tailored to high-plastic, variable-moisture feeds.

Optimized air classification and dewatering effectively addressed local challenges, enhancing the system's adaptability to high-plastic, variable-moisture feeds.

Key outcomes:

· Volume Reduction: Processes 300+ tons daily, shrinking waste by over 70% to ease landfill strain.

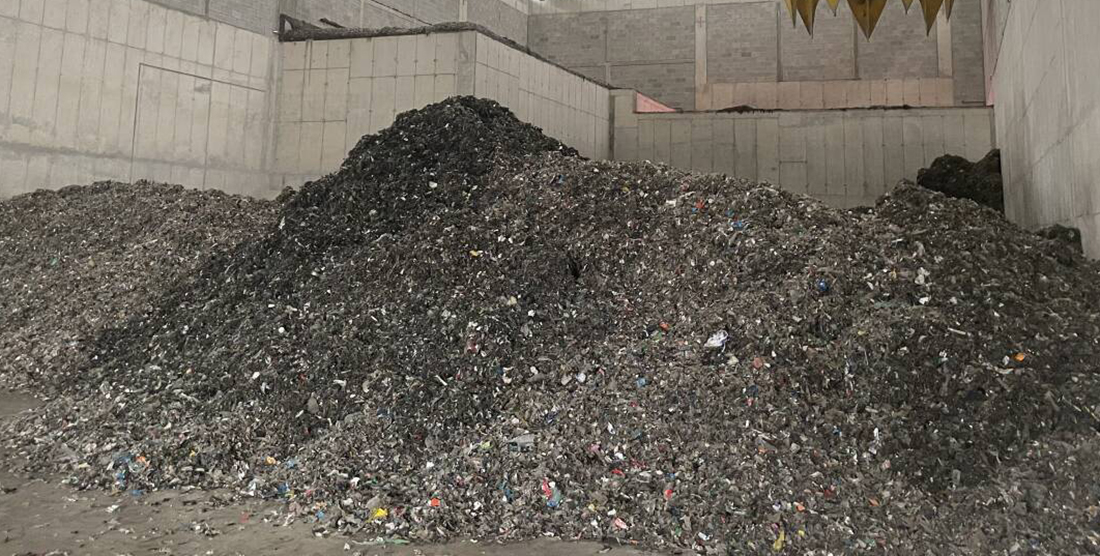

· Resource Yield: Generates ~0.5 tons of high-calorific AFR per ton of input, fueling nearby coal-fired power stations and cement kilns.

· Cost and Carbon Wins: Users report 15%+ fuel cost savings, plus carbon credit revenues—aligning with net-zero mandates and circular economy goals.

This deployment not only diverts waste from dumps but integrates seamlessly with regional grids, proving Harden's edge in tropical-climate waste shredding.

Fueling a Sustainable Future

Beyond disposal, MSW-to-AFR via advanced shredding redefines waste as a strategic asset in Southeast Asia's energy transition. Harden's solutions—scalable, low-maintenance, and ROI-focused—empower operators to meet dual-carbon targets while generating revenue. In Southeast Asia, we're turning "misplaced resources" into reliable power.
